DO NOT USE THIS DEVICE IF:

• Directly over the eyes
• Over the thyroid gland
• You are breastfeeding, pregnant or think you may be pregnant
• You have cancer or history of cancer
• You have a fever
• Near a pacemaker or any other electrical medical implants
• You have Epilepsy or have ever experienced a seizure
• You are sensitive to light or heat

Chiropractors have the unique understanding of anatomy and neurophysiology, coupled with amazing palpation skills, which makes for the perfect skill set to learn how to properly implement cold laser therapy treatments very quickly for any issue or complaint.

When treating a patient with the PainBuster^® we have thoroughly tested and found that following a therapeutic order or treatment hierarchy yields quick & super-efficient results for any issue or complaint. The treatment hierarchy is as follows: lymphatics, circulatory, nerves & dermatomes, acupuncture points (if trained) and finally treatment of the target tissue. Most of the time, only 1-3 steps are needed in the treatment hierarchy to yield desired results.

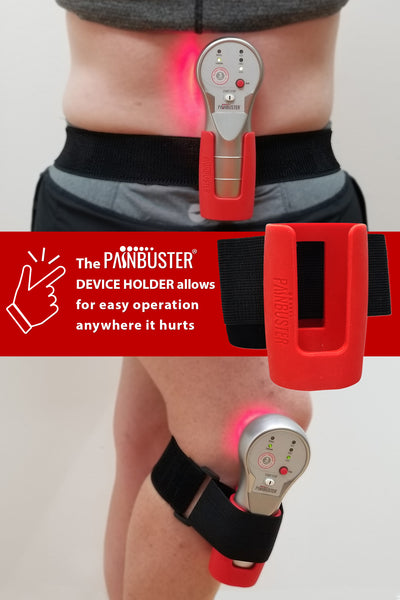

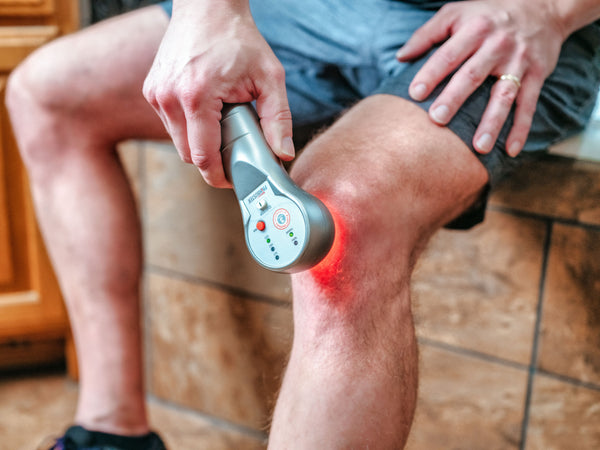

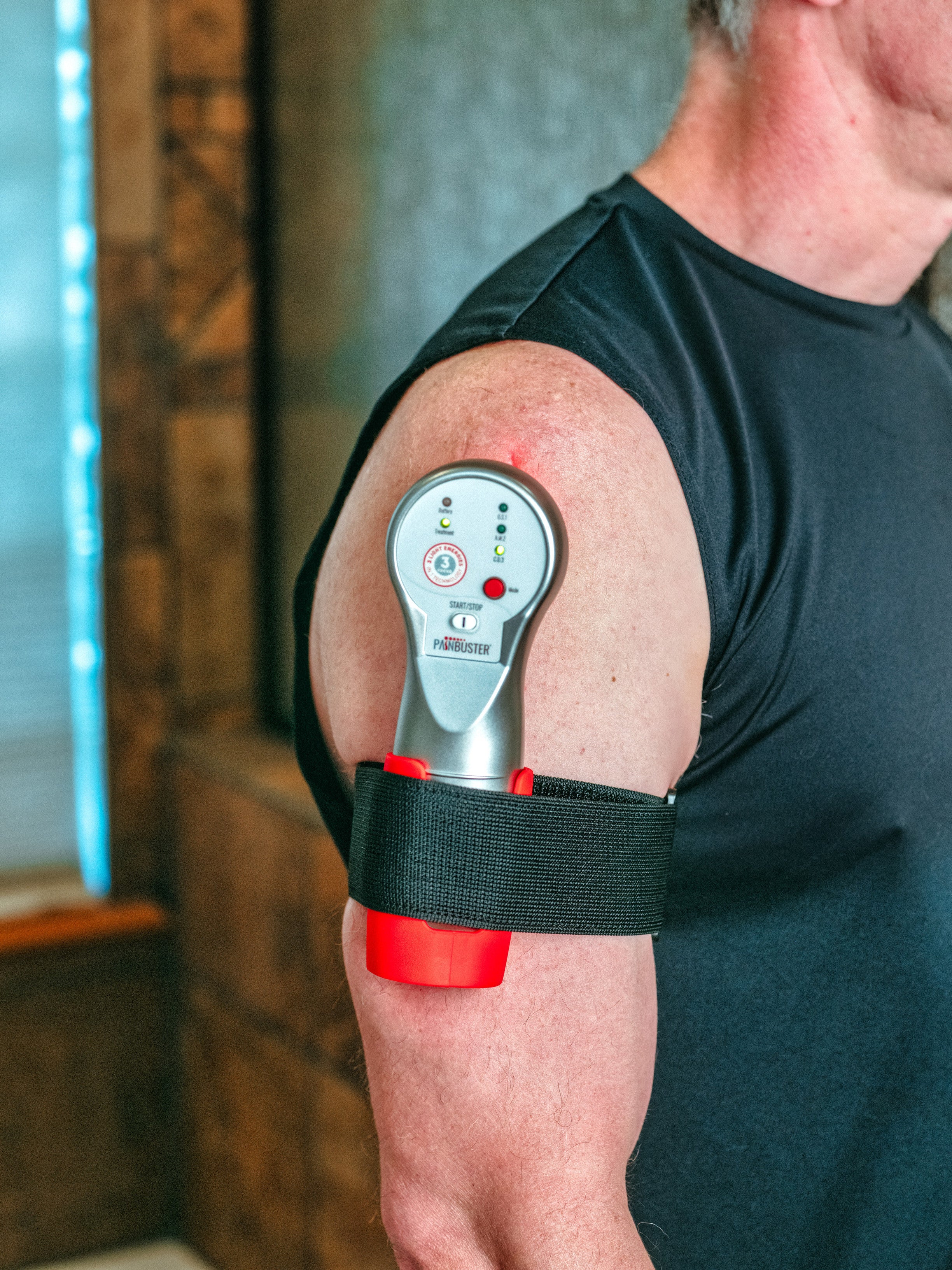

For smaller areas, lymphatics, circulation, nerves or painful joints (i.e. medial Xiyan or inner eye of the knee), for 30 seconds to 5 minutes, you can strap the PainBuster^® device in the included PainBuster hands-free holster or using a flex arm mounted to a medical cart (not included), pinpointed over the painful area(s) with the laser emitter directly touching the bare skin until the desired treatment time or outcome is achieved.

For larger areas like a dermatome or sore and painful muscles (i.e. hamstring muscle), for 2 to 5 minutes+, you can manually scan the PainBuster^® device over the entire treatment area with the laser emitter directly touching the bare skin and going over the area uniformly in a grid like pattern horizontally and vertically and repeating until the desired treatment time or outcome is achieved.

For athletes whether professional or weekend warriors, PainBuster^® can be used as a pre-workout/game pre-conditioning and injury prevention strategy and post-workout/game accelerated recovery and injury prevention strategy. Pre-workout/game goals would be to pre-condition necessary nerve and muscle groups for that particular athlete which will load ATP directly into these target tissues prior to a workout or game. Post-workout/game goals would be to treat nerves, muscles and joints for that particular athlete which will reduce lactic acid, inflammation and increase ATP again for an accelerated recovery.

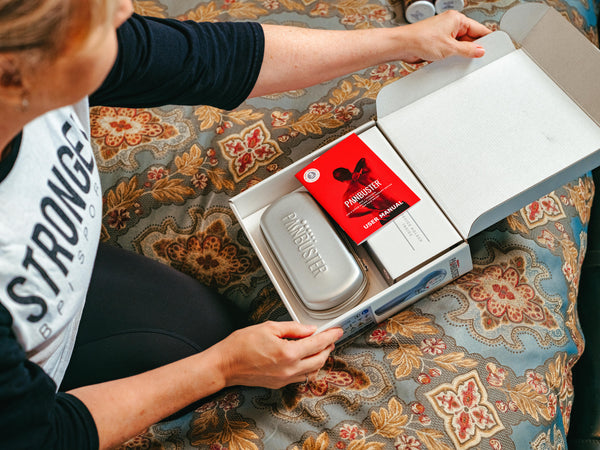

To be able to quickly implement PainBuster^® in your office or to quickly be able to use at home on yourself or family on Day 1 of receiving your PainBuster^® device, we include the following:

• User Manual & Quick Start Guide
• Treatment Hierarchy & Protocol Guide
• Professional Video Treatment Library
• Dedicated DC Laser Experts Available for Questions & Support

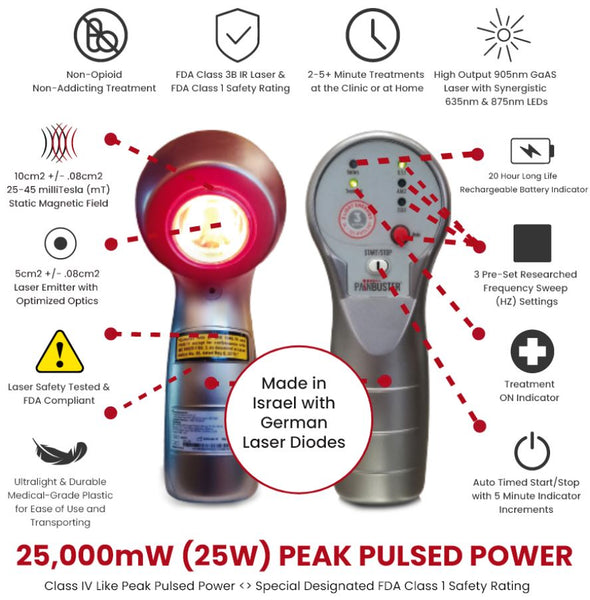

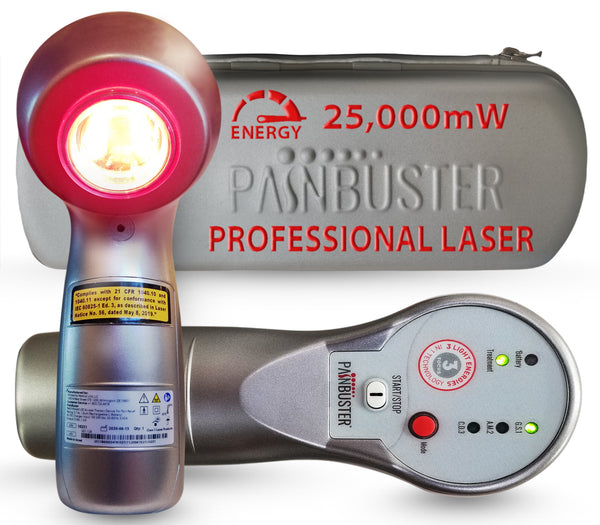

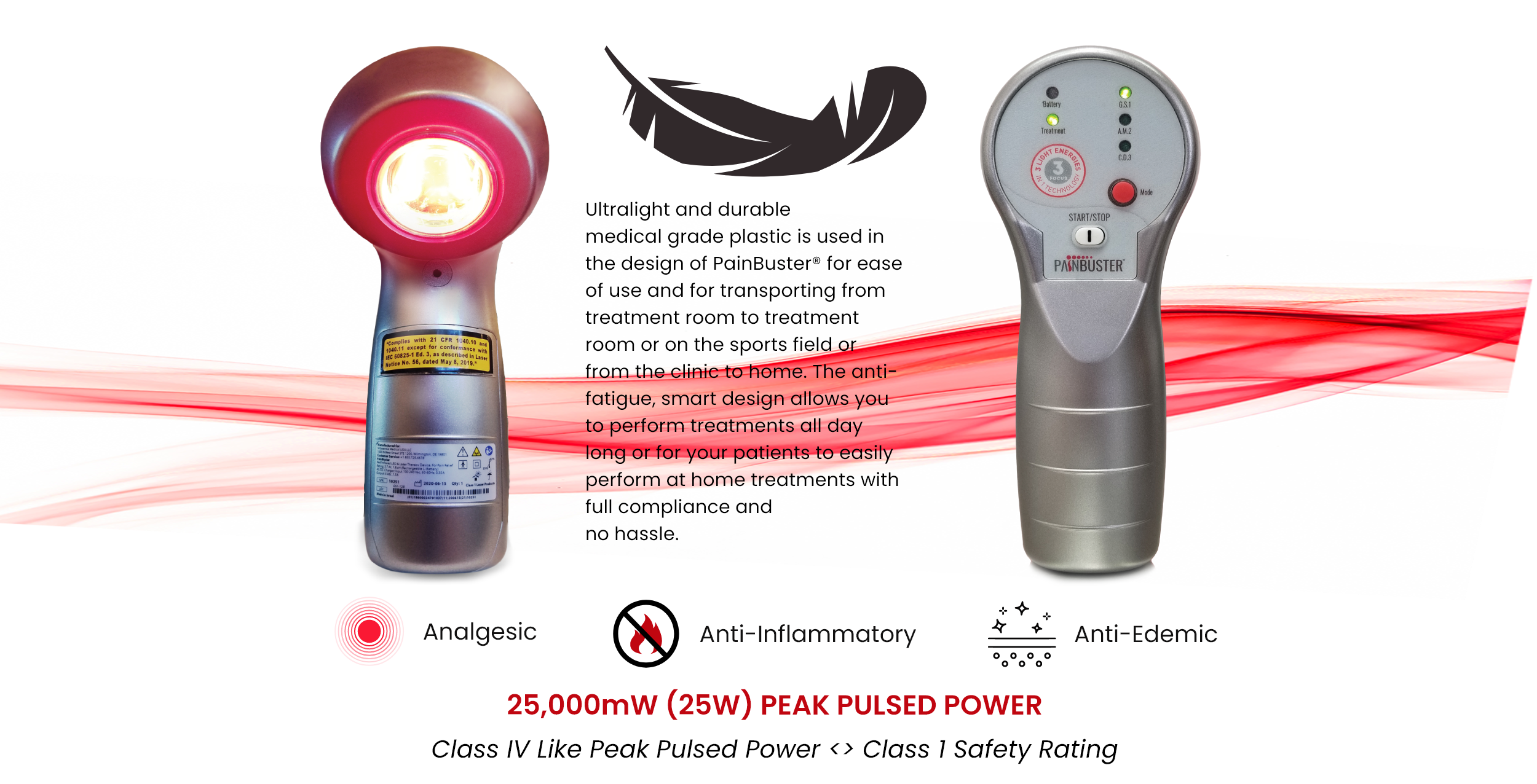

Laser Peak Power: 25,000mW

Average power:

Total radiation: 60-90mW

Laser radiation: 0.4-6.25mW

Infrared radiation: 30-90mW

Red LEDs: 2-10mW

Wavelength of:

Laser radiation: 905nm

Infrared radiation: 875nm

Red radiation: 635nm

Laser beam parameters: The product contains a class 3B near IR laser having following beam specifications:

Wavelength - 905nm

Pulse energy - 3W

Pulse width - 100 ns

Beam Diameter - 1.3x3.1 mm

Beam divergence - > 100 mR

Laser Hazard Class: The emerging laser beam from the product is assigned Class 1.

Compliance Statement: The product is designed and built to comply with the EN/IEC 60825-1: 2007-03, and with CDRH Title 21 CFR 1040.10 requirements as a Class 1 laser product. Class 1 laser beam is safe during use, including long-term direct intra-beam viewing, even when exposure occurs while using optical viewing instruments.

Power Source: AC/DC battery charger - 100-240 V, 50-60 Hz 0.4A.

Class II equipment, Applied Part type BF Laser class I [IEC 60825-1]

Supply ratings: 5 VDC, Max 1.8A

Mode of operation: Pulsed

Dimensions: 14cm x 5cm x 5cm

Weight: 300g

Expected Service Life: 5 years
